The U4930 series MEMS inertial measurement module is a highly reliable and cost-effective six-axis MEMS inertial measurement module, which can be widely used in navigation, control, and measurement fields represented by vehicles, ships, and drones. The U4930 series inertial measurement module integrates high-performance MEMS gyroscopes and MEMS accelerometers within an independent structure. The gyroscopes and accelerometers selected for the system represent the leading level of MEMS technology inertial devices. The three-axis MEMS gyroscopes sense the angular motion of the carrier, and the three-axis MEMS accelerometers sense the linear acceleration of the carrier. The system internally performs compensation for zero bias, scale factor, non-orthogonal error, and acceleration-related terms across all temperature parameters, maintaining high measurement accuracy over a long period of time.
The U4930A series inertial measurement module can be configured with different hardware and software according to user needs.
Número de pieza, :
U4930Orden (MOQ) :
1Product Series and Parameters
| Parameters | U4930-A | U4930-B | U4930-C |
| Gyroscope | |||
| Measuring range（°/s） | ±400 | ±400 | ±500 |
| Full temperature zero bias（°/h，3σ） | ≤2 | ≤3 | ≤30 |
| Zero bias stability（°/h，10s） | ≤0.3 | ≤0.8 | ≤2 |
| Zero bias instability（°/h，allan，typ） | ≤0.03 | ≤0.08 | ≤0.1 |
| Zero bias repeatability（°/h） | ≤0.3 | ≤0.5 | ≤1 |
| Angle Random Walk （°/√h） | ≤0.02 | ≤0.05 | ≤0.1 |
| Scale factor nonlinearity（ppm） | ≤100 | ≤100 | ≤100 |
| Cross-coupling（rad） | ≤0.001 | ≤0.001 | ≤0.001 |
| Bandwidth（Hz） | ≥200Hz | ≥200Hz | ≥200Hz |
| Accelerometer | |||
| Measuring range（g） | ±30 | ||
| Full temperature zero bias（mg，3σ） | ≤2 | ||
| Zero bias stability（μg，10s） | ≤50 | ||
| Zero bias instability（μg，allan，typ） | ≤30 | ||
| Zero bias repeatability（ug） | ≤50 | ||
| Velocity Random Walk（m/s/√h） | ≤0.03 | ||
| Scale factor nonlinearity（ppm，±1g） | ≤100 | ||
| Cross-coupling（rad） | ≤0.001 | ||
| Bandwidth（Hz） | ≥200Hz | ||
| Physical Characteristics | |||
| Power supply（V） | 5~12 | ||
| Steady-state power (W) | ≤2 | ||
| Startup time（s） | ≤2 | ||
| Data rate（Hz，max） | 2000 | ||
| Size（mm×mm×mm） | 64.8×47×35.3 | ||
| Weight（g） | 130±10 | ||
| Operating environment | |||
| Operating temperature（℃） | -40~80 | ||
| Storage temperature（℃） | -55~85 | ||
| Vibration（g，RMS） | 20~2000HZ，6.06 | ||
| Shock（g） | 500/1ms | ||
Production process

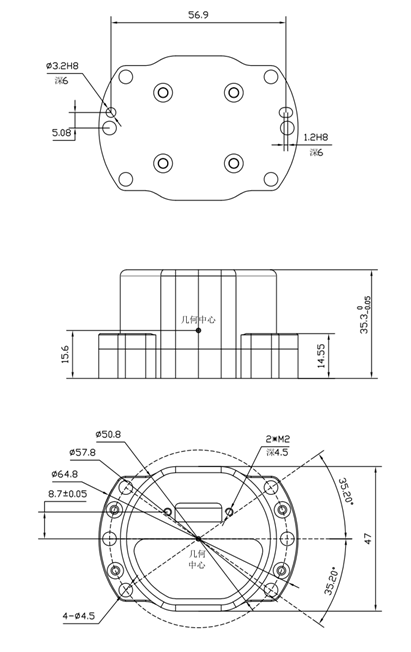

Product dimension
Application Scenarios
