Single Axis Angular Vibration Table Test Machine

Single Axis Angular Vibration Table Test Machine

The single axis angular vibration turntable consists of two main parts: a mechanical platform and a measurement and control system. It adopts a vertical structure and a precision mechanical shaft system, and has position and vibration functions. It is used for vibration testing and calibration of inertial systems.

  • Número de pieza, :

    T1G200V

  • Orden (MOQ) :

    1
Preguntar ahora
  • DESCRIPCIÓN

 Product Series and Parameters

Parameter T1G200V
Structural type Vertical
Table size (diameter) φ600
Maximum load weight 5kg (Optional）
Table jumping 0.02mm
Range of centrifuge force 1~500g
Acceleration accuracy Within 1~10g, 5x10-4
Within 10~500g, 5x10-5
G value standard uncertainty Within 1~10g, 5x10-4
Within 10~500g, 2x10-5
Starting time ≤30s
Spindle verticality ±1″~± 5″
Resolution 0.36″
Communication interface RS422/RS232/Ethernet (optional)
Temp chamber Optional

Production process



Product Pictures

  •

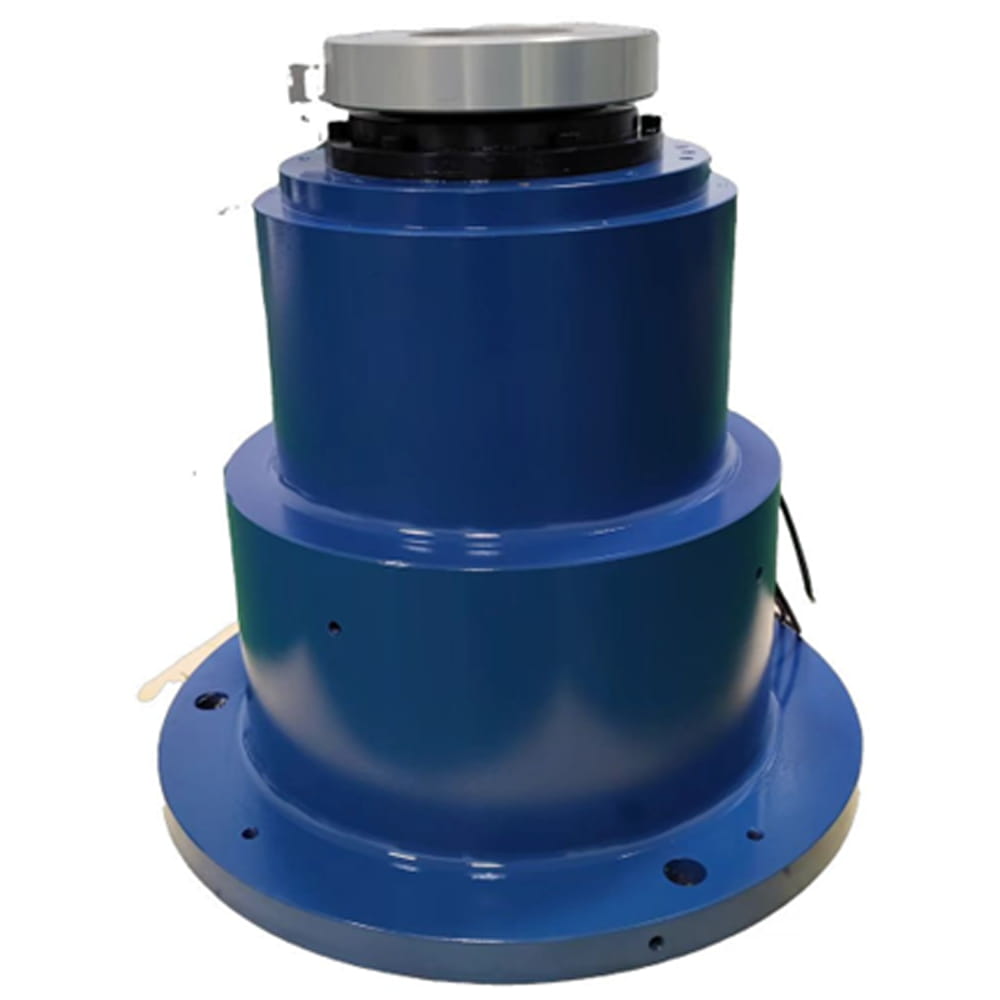

  • Single Axis Angular Vibration Table Test Machine
  •

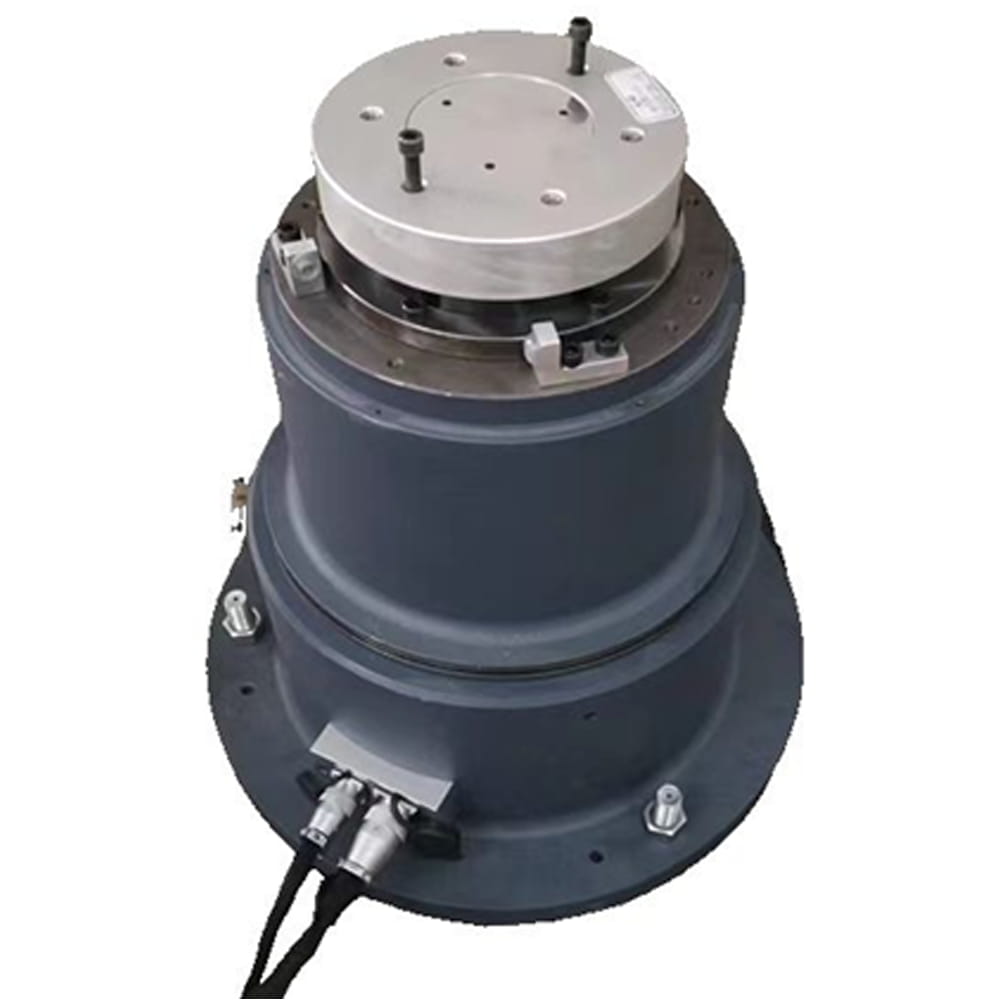

  • Single Axis Angular Vibration Table Test Machine

Application Scenarios

single-axis temperature-controlled rotary table application
At different temperatures, by applying a "rotational stimulus" to only one axis, the temperature drift, zero bias, and scale factor issues of the gyroscope/IMU on that specific axis can be accurately measured and calibrated.
Contact Us
Inertial Measurement Unit
Inertial Measurement Unit
Inertial Navigation System
Inertial Navigation System
Attitude and Heading Reference System
Attitude and Heading Reference System

FAQ

Q1: What is the purpose of this angular vibration table?
A:This machine is designed for angular vibration testing and calibration of inertial devices such as MEMS gyroscopes, IMUs, and other navigation sensors. It simulates precise angular motion across a single axis.

Q2:  What is the rotation accuracy of this device?
A: The rotation accuracy ranges from ±1″ to ±3″, with a resolution of 0.36″, ensuring high-precision calibration for sensitive sensors.

Q3:  What is the maximum angular vibration frequency and acceleration?
A: The table supports a frequency range of 0–400 Hz and a maximum angular acceleration of up to 100,000°/s².
